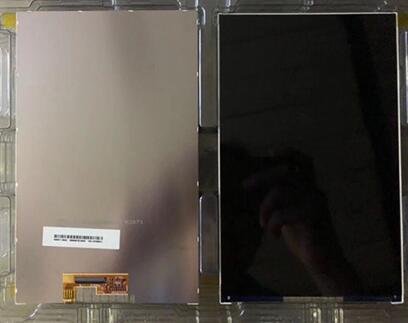

BOE 8.0 inch TFT LCD TV080WXM-NS1 800*1280
Mouse over to zoom in
Product 104/121

Price: US$33.00   Submit a wholesale Inquiry
Quantity:



Brand: BOE

Model: TV080WXM-NS1

Diagonal Size: 8.0 inch

Type: a-Si TFT-LCD, LCM

Pixel Format: 800(RGB)×1280  WXGA

Configuration: RGB Vertical Stripe

Surface:

Brightness: 530 cd/m² (Typ.)

Contrast Ratio: 1100:1 (Typ.) (TM)

Response Time: 30 (Typ.)(Tr+Td) ms

Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)

Operating Mode: ADS, Normally Black, Transmissive

Support Color: 16.7M   87% (CIE1931)

Lamp Type: 4 strings WLED

Frame Rate: 60Hz

Touch Panel: Without

Interface Type: 44 pins  MIPI (4 data lanes) , Connector

Power Supply: 1.8/5.4/-5.4V (Typ.) (VDD1/PVDD/NVDD)

Operating Temperature: -20 ~ 65°C

Storage Temperature: -30 ~ 80 °C

Application:  Pad & Tablet
