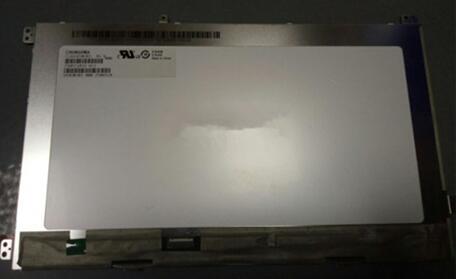

TFT LCDCPT 10.1 inch TFT LCD Screen CLAA101WJ01XG
Mouse over to zoom in
- Product 45/108
-
Brand: CPT
Model: CLAA101WJ01XG
Diagonal Size: 10.1 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1366(RGB)×768 WXGA
Configuration: RGB Vertical Stripe
Surface: Glare (Haza 0%), Hard Coating
Brightness: 450 cd/m² (Typ.)
Contrast Ratio: 800:1 (Typ.) (TM)
Response Time: 35 (Typ.)(Tr+Td) ms
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)
Operating Mode: TN, Normally Black, Transmissive
Support Color: 16.7M 50% (CIE1931)
Lamp Type: 6S6P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: MIPI (4 data lanes) connector, 39 pins
Power Supply: 3.3V (Typ.)
Operating Temperature: 0 ~ 50°C
Storage Temperature: -25 ~ 65 °C
Application: Pad & Tablet
