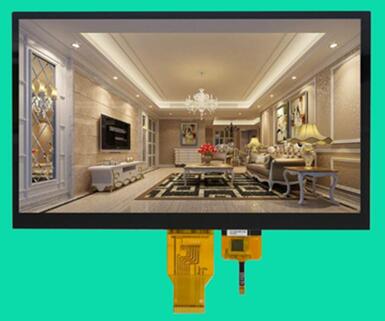

Size: 10.1 inch
LCD Type: TFT
Number of Dots: 1024(RGB)*600
LCD Dimension: 235.00*143.00*5.15mm
Active Area: 222.72*125.28mm
Dot Pitch: 0.2175*0.2088mm
PIN NO.: 40P
Display Color: 16.7M
Backlight: White LED
Color Pixel Arrangement: RGB Stripe
Polarizer Mode: Transmissive Type, Normally White Mode
Viewing Direction: 6 o’clock
Data Interface: LVDS interface
CTP Interface: I2C interface
Brightness: 300 (typ.)
Contrast Ratio (CR): 350:1
NTSC (Color gamut): 50%
Backlight Voltage: 9.6V (typ.)
Backlight Current: 260mA (typ.)
Operating Temp.: -20 ~ 70 degree
Storage Temp.: -30 ~ 80 degree
ROSH
CTP Characteristics
CPT Structure Type: Cover Glass + ITO Glass (G+G)
Resolution: 1024*600
Surface Hardness: ≥ 6H
Transparency: > 86%
Drive IC: GT9271
Interface Type: I2C
I2C Slave Address (7bit): 0x14 or 0x5D
Support Point: 10
Supply Voltage: 3.3V
