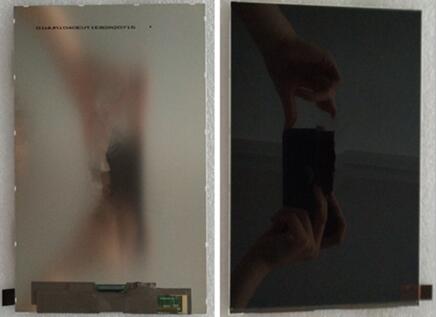

TFT LCDBOE 10.1 inch TFT LCD TV101WUM-NS0 1200*1920
Mouse over to zoom in
- Product 47/108
-
Brand: BOE
Model: TV101WUM-NS0
Diagonal Size: 10.1 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1200(RGB)×1920 WUXGA
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard Coating (3H), Antireflection
Brightness: 450 cd/m² (Typ.)
Contrast Ratio: 900:1 (Typ.) (TM)
Response Time: 35 (Typ.)(Tr+Td) ms
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)
Operating Mode: ADS, Normally Black, Transmissive
Support Color: 16.7M 71% (CIE1931)
Lamp Type: 4 strings WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 34 pins MIPI (4 data lanes) , Connector
Power Supply: 1.8/5.4/-5.4V (Typ.) (VDD/VSP/VSN)
Operating Temperature: -10 ~ 60°C
Storage Temperature: -30 ~ 70 °C
Application: Pad & Tablet
