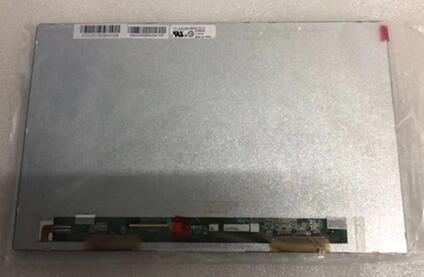

TFT LCDCPT 10.1 inch TFT LCD CLAA101WH12 LE 1280*800
Mouse over to zoom in
- Product 48/108
-
Brand: CPT
Model: CLAA101WH12 LE
Diagonal Size: 10.1 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1280(RGB)×800 WXGA
Configuration: RGB Vertical Stripe
Surface: Hard Coating (3H)
Brightness: 350 cd/m² (Typ.)
Contrast Ratio: 600:1 (Typ.) (TM)
Response Time: 30 (Typ.)(Tr+Td) ms
Viewing Angle: 80/80/60/80 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K 50% (CIE1931)
Lamp Type: 3S12P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 40 pins LVDS (1 ch, 8-bit) , Connector
Power Supply: 3.3/11/21.0/-6.0V (Typ.) (DVDD/AVDD/VGH/VGL)
Operating Temperature: 0 ~ 50°C
Storage Temperature: -25 ~ 65 °C
Application: Pad & Tablet
