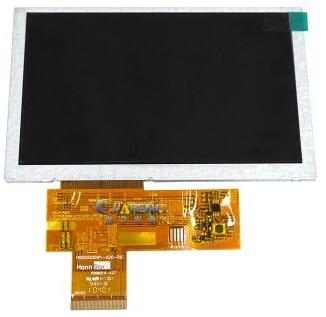

TFT LCDHannStar 5.0 inch TFT LCD Panel HSD050IDW1-A21
Mouse over to zoom in
- Product 79/100
-
Brand: HannStar
Model: HSD050IDW1-A21
Diagonal Size: 5.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Vertical Stripe
Surface:
Brightness: 400 cd/m² (Typ.)
Contrast Ratio: 600:1 (Typ.) (TM)
Response Time:
Viewing Angle:
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.2M
Lamp Type: WLED
Frame Rate:
Touch Panel: Without
Interface Type: Parallel RGB (1 ch, 8-bit) , FPC
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: All Portable Navigation Device Panel, All Pocket TV Panel, All MP4 PMP Panel, Car Display Panel, All MID UMPC Panel, Gaming Panel
