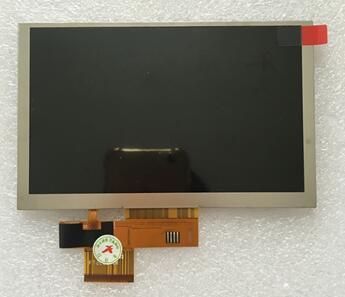

TFT LCDINNOLUX 5" HD TFT LCD EJ050NA-01E 32001022-01
Mouse over to zoom in
- Product 78/100
-
Brand: CHIMEI INNOLUX
Model: EJ050NA-01E
Diagonal Size: 5.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Vertical Stripe
Surface:
Brightness:
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 10/15 (Typ.)(Tr/Td) ms
Viewing Angle: 70/70/50/70 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.7M
Lamp Type: WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: Parallel RGB (1 ch, 8-bit)
Power Supply:
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Portable Navigation Device Panel, Pocket TV Panel, MP4 PMP Panel, Car Display Panel
