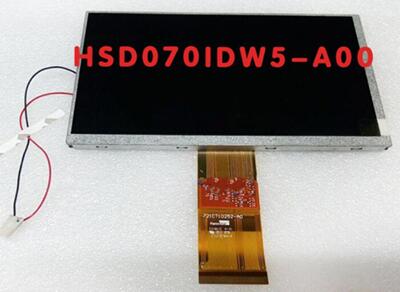

TFT LCDHannStar 7.0 inch TFT LCD Screen HSD070IDW5-A00
Mouse over to zoom in
- Product 284/374
-
Brand: HannStar
Model: HSD070IDW5-A00
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, CELL
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Vertical Stripe
Surface:
Brightness: 0 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 4/12 (Typ.)(Tr/Td) ms
Viewing Angle: 75/75/60/70 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K/16.7M 53% (CIE1931)
Lamp Type: No B/L
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: Parallel RGB (1 ch, 6/8-bit) , Connector, 60 pins
Power Supply: 3.0/10.0/15/-7V (Typ.) (VCC/AVDD/VGH/VGL)
Operating Temperature: 20 ~ 60°C
Storage Temperature: -30 ~ 70 °C
Application: Digital Photo Frame Panel, Portable DVD Player Panel, Car Display Panel
