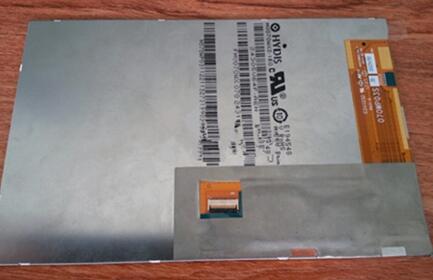

TFT LCDHYDIS 7.0 inch HD TFT LCD HV070WX2-1E0 800*1280
Mouse over to zoom in
- Product 283/374
-
Brand: HYDIS
Model: HV070WX2-1E0
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×1280 WXGA
Configuration: RGB Vertical Stripe
Surface:
Brightness: 450 cd/m² (Typ.)
Contrast Ratio: 700:1 (Typ.) (TM)
Response Time: 30 (Typ.)(Tr+Td) ms
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)
Operating Mode: HFFS, Normally Black, Transmissive
Support Color: 262K 50% (CIE1931)
Lamp Type: 5S5P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 31 pins LVDS (1 ch, 6-bit) , Connector
Power Supply: 3.3V (Typ.)
Operating Temperature: 20 ~ 60°C
Storage Temperature: -30 ~ 70 °C
Application: Pad & Tablet
