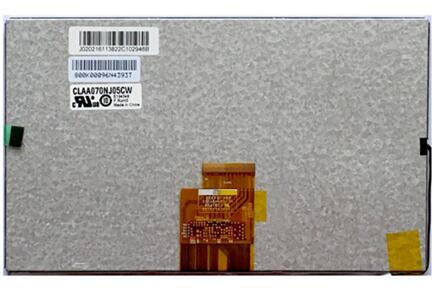

TFT LCDCPT 7 inch TFT LCD Panel CLAA070NJ05CW 1024*600
Mouse over to zoom in
- Product 282/374
-
Brand: CPT
Model: CLAA070NJ05CW
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1024(RGB)×600 WSVGA
Configuration: RGB Vertical Stripe
Luminance: 500 cd/m² (Typ.)
Treatment: Antiglare
Response Time: 25 (Typ.)(Tr+Td) ms
Contrast Ratio: 800:1 (Typ.) (TM)
Viewing Angle: 80/80/60/70 (Typ.)(CR≥10)
Operating Mode: TN, Normally Whtie, Transmissive
Support Color: 262K / 16.7M 50% (CIE1931)
Lamp Type: SS9P WLED
Frame Rate: 60Hz
Signal Type: LVDS (1 ch, 6/8-bit) FPC, 40 pins
Voltage Supply: 3.3/9.6/18.0/-6V (Typ.) (VDD/AVDD/VGH/VGL)
Touch Panel: Without
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Industrial Application Panel, Car Display Panel
