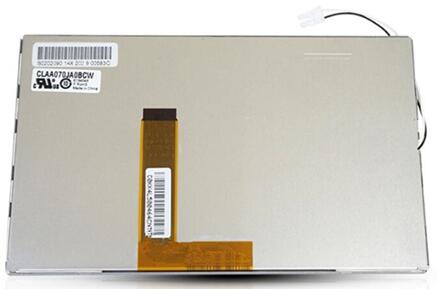

TFT LCDCPT 7.0 inch 26P TFT LCD Screen CLAA070JA0BCW
Mouse over to zoom in
- Product 281/374
-
Brand: CPT
Model: CLAA070JA0BCW
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 480(RGB)×234
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 400 cd/m² (Typ.)
Contrast Ratio: 450:1 (Typ.) (TM)
Response Time: 20 (Typ.)(Tr+Td) ms
Viewing Angle: 60/60/40/60 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transflective
Support Color: 262K
Lamp Type: 6S3P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface TFT Specific Analog RGB, Type: 26 pins, FPC
Power Supply: 5.0/5.0/18.0/-6.0V (Typ.) (VCC/AVDD/VGH,VGL)
Operating Temperature: -30 ~ 85°C
Storage Temperature: -40 ~ 90 °C
Application: Digital Photo Frame Panel, Portable DVD Player Panel
