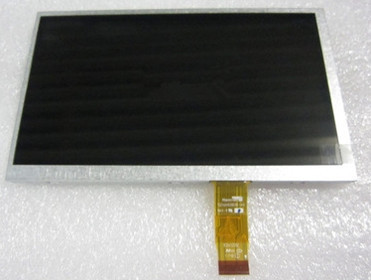

TFT LCDHannStar 7 inch TFT LCD HSD070I651-F20 480*234
Mouse over to zoom in
- Product 280/374
-
Panel Brand: HannStar
Panel Model: HSD070I651-F20
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 480(RGB)*234
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Harding coating (3H)
Brightness: 200 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: Full Color
Response Rime: 5/20 (Typ.) (Tr/Td)
Viewing Angle: 70/70/65/65 (Typ.) (CR≥10) (L/R/U/D)
Frequency:
Lamp Type: 3S5P WLED
Signal Interface: TFT Specific Analog RGB
Input Voltage: 3.3/(3-5.5)/15/-10V (Typ.) (DVDD/VGH/VGL)
RoHS
Application: All Digital Photo Frame Panel, All Portable DVD Player Panel, All Video Door Phone Panel
