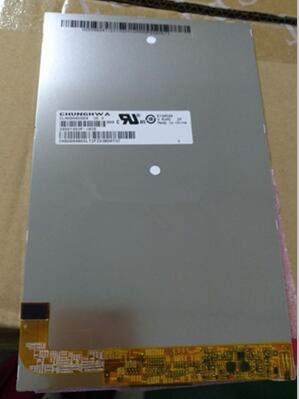

TFT LCDCPT 8.0 inch TFT LCD CLAA080WQ04 XG 800*1280
Mouse over to zoom in
- Product 74/121
-
Brand: CPT
Model: CLAA080WQ04 XG
Diagonal Size: 8.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×1280 WXGA
Configuration: RGB Vertical Stripe
Luminance: 400 cd/m² (Typ.)
Treatment: Glare (Haze 0%), Hard coating (3H)
Response Time: 25 (Typ.)(Tr+Td) ms
Contrast Ratio: 800:1 (Typ.) (TM)
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)
Operating Mode: HFFS, Normally Black, Transmissive
Support Color: 16.7M 50% (CIE1931)
Lamp Type: 3S7P WLED
Frame Rate: 60Hz
Signal Type: MIPI (4 data lanes), Connector, 34 pins
Voltage Supply: 1.8/3.3V (Typ.) (VCCI/VDDI)
Touch Panel: Without
Operating Temperature: 0 ~ 50°C
Storage Temperature: -20 ~ 60 °C
Application: Pad & Tablet
