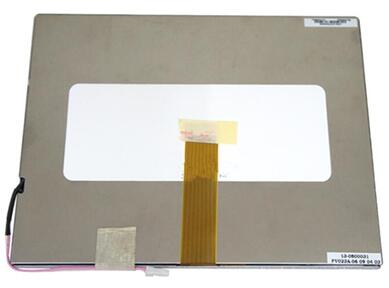

TFT LCDPVI 8.0 inch TFT LCD Screen PA080XS1 480*468
Mouse over to zoom in
- Product 73/121
-
Brand: PVI
Model: PA080XS1
Diagonal Size: 8.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 480(RGB)×468
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 350 cd/m² (Typ.)
Contrast Ratio: 350:1 (Typ.) (TM)
Response Time: 15/25 (Typ.)(Tr/Td) ms
Viewing Angle: 50/50/15/35 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: Full Color
Lamp Type: 1 pcs CCFL
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 32 pins TFT Specific Analog RGB , FPC
Power Supply: 3.3/3.3/13.0/24.0/-8.0V (Typ.) (VCC/VDD1/VDD2/VGH/VEE)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Car Display Panel
