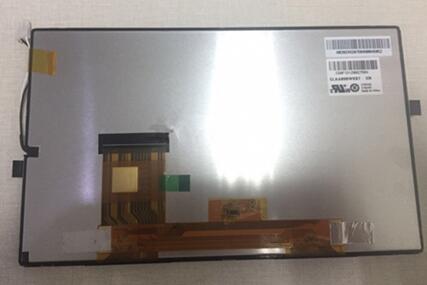

TFT LCDCPT 8 inch TFT LCD Panel CLAA080WK07 XN 1280*720
Mouse over to zoom in
- Product 72/121
-
Brand: CPT
Model: CLAA080WK07 XN
Diagonal Size: 8.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1280(RGB)×720 WXGA
Configuration: RGB Vertical Stripe
Surface: Antiglare (Haze 25%), Hard coating (3H)
Brightness: 600 cd/m² (Typ.)
Contrast Ratio: 900:1 (Typ.) (TM)
Response Time: 25 (Typ.)(Tr+Td) ms
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)
Operating Mode: HFFS, Normally Black, Transmissive
Support Color: 262K / 16.7M 70% (CIE1931)
Lamp Type: 9S3P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: LVDS (1 ch, 6/8-bit) , 60 pins , FPC
Power Supply: 3.3/12.4/22/-6V (Typ.) (DVDD/AVDD/VGH/VGL)
Operating Temperature: -30 ~ 85°C
Storage Temperature: -40 ~ 85 °C
Application: Industrial Application Panel, Car Display Panel
