TFT LCD
Mouse over to zoom in
- Product 122/203
-

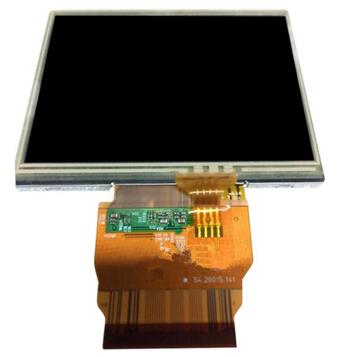

Brand: AUO
Model: A035QN02 V0
Diagonal Size: 3.5 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 320(RGB)×240, QVGA
Configuration: RGB Vertical Stripe
Surface: Hard coating (3H)
Brightness: 350 cd/m² (Typ.)
Contrast Ratio: 400:1 (Typ.) (TM)
Response Time: 10/15 (Typ.)(Tr/Td) ms
Viewing Angle: 60/60/50/55 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K 60% (CIE1931)
Lamp Type: 6S1P WLED
Frame Rate: 60Hz
Touch Panel: Yes
Interface: 54 pins, Parallel RGB (1 ch, 6-bit) + SPI, FPC
Power Supply: 3.3V (Typ.)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 85 °C
Application: All Digital Still Camera Panel, All Digital Video Camera Panel, All Portable Navigation Device Panel, All Pocket TV Panel, All VOIP Phone Panel
-
