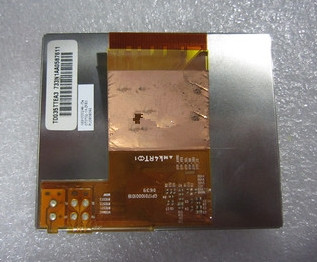

TFT LCDTPO 3.5 inch TFT LCD TD035TTEA3 QVGA 320*240
Mouse over to zoom in
- Product 121/203
-
Panel Brand: TPO
Panel Model: TD035TTEA3
Panel Type: LTPS TFT-LCD, Panel
Panel Size: 3.5 inch
Resolution: 320(RGB)*240, QVGA
Display Mode: TN, Normally White, Transmissive
Surface:
Brightness: 290 cd/m2 (Typ.)
Contrast Ratio: 300:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 20 (Typ.) (Tr+Td) (ms)
Viewing Angle: 60/60/60/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency: 70Hz
Lamp Type: 6S1P WLED
Signal Interface: Parallel RGB (1 ch, 6-bit)
Input Voltage: 3.3/3.3V (Typ.) (VDDI/VDD)
RoHS
Application: All Portable Navigation Device Panel, All Car Display Panel
