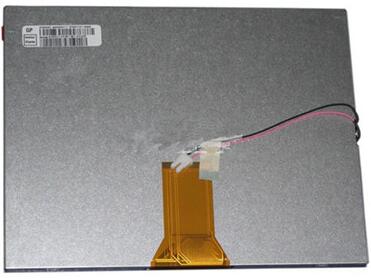

TFT LCDINNOLUX 8.0 inch TFT LCD Panel AT080TN52 800*600
Mouse over to zoom in
- Product 60/121
-
Brand: INNOLUX
Model: AT080TN52
Diagonal Size: 8.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×600, SVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 250 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 10/15 (Typ.)(Tr/Td) ms
Viewing Angle: 70/70/50/70 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, TMR
Support Color: 262K / 16.2M
Lamp Type: 3S9P WLED
Frame Rate:
Touch Panel: Without
Interface Type: 50 pins Parallel RGB (1 ch, 6/8-bit)+SPI, FPC
Power Supply: 3.3/10.4/16.0/-7V (Typ.) (VCC/AVDD/VGH/VGL)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Digital Photo Frame Panel, Portable DVD Player Panel
