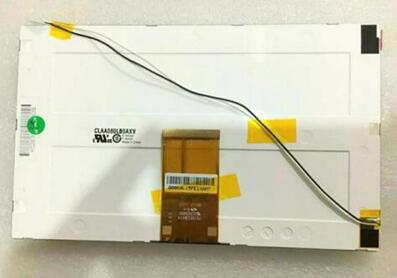

TFT LCD8.0 inch 60P LCD Screen CLAA080LB0AXV 800*480
Mouse over to zoom in
- Product 59/121
-
Panel Brand: CPT
Panel Model: CLAA080LB0AXV
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 8.0 inch
Resolution: 800(RGB)*480, WVGA
Display Mode: HFFS, Normally Black, Transmissive
Surface: Antiglare, Hard coating (3H)
Brightness: 400 cd/m2 (Typ.)
Contrast Ratio: 700:1 (Typ.)
Display Color: 262K / 16.2M (6-bit / 6-bit +FRC)
Response Rime: 30 (Typ.) (Tr+Td)
Viewing Angle: 80/80/80/80 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 4S8P WLED
Signal Interface: Parallel RGB (1 ch, 6/8-bit)
Input Voltage: 3.3/12.5/18/-6V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application: All Car Display Panel
