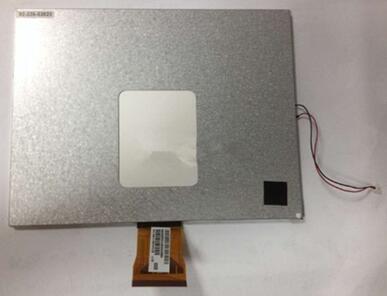

TFT LCDAUO 8.0 inch TFT LCD Screen A080SN03 V2 800*600
Mouse over to zoom in
- Product 70/121
-
Brand: AUO
Model: A080SN03 V2
Diagonal Size: 8.0 inch
Type: a-Si TFT-LCD, CELL
Pixel Format: 800(RGB)×600 SVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard Coating (3H)
Brightness: 0 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 12/18 (Typ.)(Tr/Td) ms
Viewing Angle: 70/70/60/65 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.2M 50% (CIE1931)
Lamp Type: No B/L
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: TTL (1 ch, 8-bit) + SPI, 60 pins, FPC
Power Supply: 3.3/5/-5/14/-14V (Typ.) (VDDIO/VDPA/VDNA/VGH/VGL)
Operating Temperature: -10 ~ 60°C
Storage Temperature: -30 ~ 70 °C
Application: Digital Photo Frame Panel, Portable DVD Player Panel
