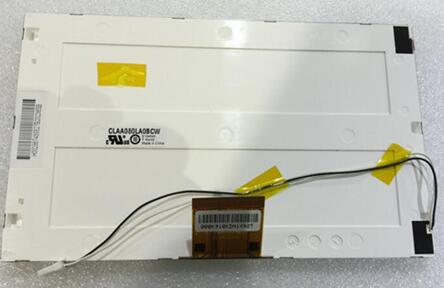

TFT LCDCPT 8.0 inch TFT LCD Panel CLAA080LA0BCW 800*480
Mouse over to zoom in
- Product 69/121
-
Brand: CPT
Model: CLAA080LA0BCW
Diagonal Size: 8.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare , Hard coating (3H)
Brightness: 250 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 25 (Typ.)(Tr+Td) ms
Viewing Angle: 70/70/50/70 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K / 16.2M
Lamp Type: 3S6P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: TTL (1 ch, 6-bit) , 60 pins , FPC
Power Supply: 3.3/9.6/18/-6V (Typ.) (VCC/AVDD/VGH/VGL)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Digital Photo Frame Panel, All Portable DVD Player Panel
