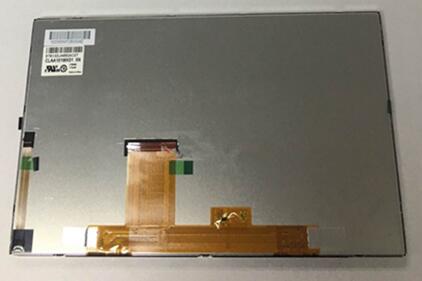

TFT LCDCPT 10.1 inch TFT LCD CLAA101WK01 XN 1280*720
Mouse over to zoom in
- Product 102/108
-
Brand: CPT
Model: CLAA101WK01 XN
Diagonal Size: 10.1 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1280(RGB)×720 WXGA
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard Coating (3H)
Brightness: 600 cd/m² (Typ.)
Contrast Ratio: 900:1 (Typ.) (TM)
Response Time: 25 (Typ.)(Tr+Td) ms
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)
Operating Mode: HFFS, Normally Black, Transmissive
Support Color: 262K/16.7M 73% (CIE1931)
Lamp Type: 6S5P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 60 pins LVDS (1 ch, 6/8-bit) , FPC
Power Supply: 3.3/13.0/24.0/-6.0V (Typ.) (DVDD/AVDD/VGH/VGL)
Operating Temperature: -30 ~ 85°C
Storage Temperature: -40 ~ 90 °C
Application: Car Display Panel
