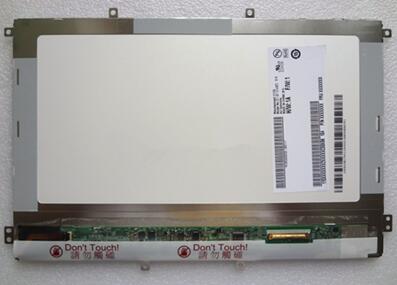

TFT LCDAUO 10.1 inch TFT LCD Panel B101EW05 V.0 1280*800
Mouse over to zoom in
- Product 101/108
-
Brand: AUO
Model: B101EW05 V0
Diagonal Size: 10.1 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1280(RGB)×800, WXGA
Configuration: RGB Vertical Stripe
Surface: Hard coating (3H), Reflection 1.5% (Max.)
Brightness: 350 cd/m² (Typ.)
Contrast Ratio: 1300:1 (Typ.) (TM)
Response Time: 25 (Typ.)(Tr+Td) ms
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)
Operating Mode: MVA, Normally Black, Transflective
Support Color: 262K 45% (CIE1931)
Lamp Type: WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface: LVDS (1 ch, 6-bit), 40 pins, Connector
Power Supply: 3.3V (Typ.)
Operating Temperature: 0 ~ 50°C
Storage Temperature: -20 ~ 60 °C
Application: Pad & Tablet
