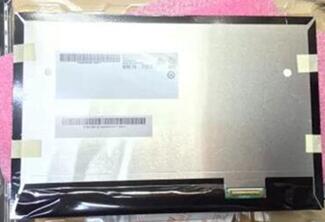

IPS AUO 10.1 inch TFT LCD B101EVN07.0 1280*800
Mouse over to zoom in
Product 82/91

Price: US$50.80   Submit a wholesale Inquiry
Quantity:



Panel Brand: AUO

Panel Model: B101EVN07.0

Panel Type: a-Si TFT-LCD, Panel

Panel Size: 10.1 inch

Resolution: 1280(RGB)*800, WXGA

Display Mode: MVA, Normally Black, Transmissive

Active Area: 216.96*135.6 mm

Outline: 229.46*149.2*4.96 mm

Surface: Hard coating (3H), Reflection 1.5% (Max.)

Brightness: 300 cd/m2 (Typ.)

Contrast Ratio: 1300:1 (Typ.)

Display Color: 262K (6-bit) CIE1931 45%

Response Rime: 25 (Typ.) (Tr+Td)

Viewing Angle: 85/85/85/85 (Typ.) (CR≥10) (L/R/U/D)

Frequency: 60Hz

Lamp Type: WLED  Embedded (LED Driver)

Signal Interface: LVDS (1 ch, 6-bit), 40 Pins

Input Voltage: 3.3V (Typ.)

Application: All Pad, Tablet Panel
