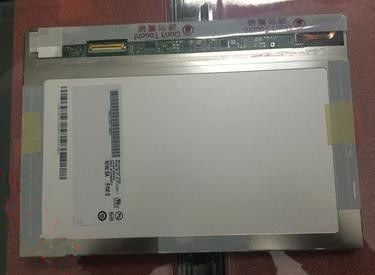

TFT LCDIPS AUO 10.1 inch TFT LCD B101EVN02.1 1280*800
Mouse over to zoom in
- Product 99/108
-
Panel Brand: AUO
Panel Model: B101EVN02 V1
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.1 inch
Resolution: 1280(RGB)*800, WXGA
Display Mode: AMVA, Normally Black, Transmissive
Active Area: 216.96*135.6 mm
Outline: 229.46*149.2*5.2 mm
Surface: Hard coating (3H), Reflection 1.5% (Max.)
Brightness: 300 cd/m2 (Typ.)
Contrast Ratio: 1300:1 (Typ.)
Display Color: 262K (6-bit) CIE1931 45%
Response Rime: 25 (Typ.) (Tr+Td)
Viewing Angle: 85/85/85/85 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: WLED Embedded (LED Driver)
Signal Interface: LVDS (1 ch, 6-bit), 40 Pins
Input Voltage: 3.3V (Typ.)
Application: All Pad, Tablet Panel
