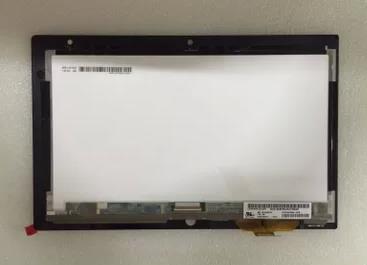

TFT LCDIPS 10.1 inch TFT LCD Screen LP101WH4-SLAF TP
Mouse over to zoom in
- Product 98/108
-
Panel Brand: /
Panel Model: LP101WH4-SLAF
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.1 inch
Resolution: 1366(RGB)*768, WXGA
Display Mode: IPS, Normally Black, Transmissive
Active Area: 222.52*125.11 mm
Outline:
Surface:
Brightness:
Contrast Ratio: 800:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 25 (Typ.) (Tr+Td)
Viewing Angle: 85/85/85/85 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: WLED Without Driver
Signal Interface: LVDS (1 ch, 8-bit)
Input Voltage: 3.3V (Typ.)
Application: All Pad, Tablet Panel
