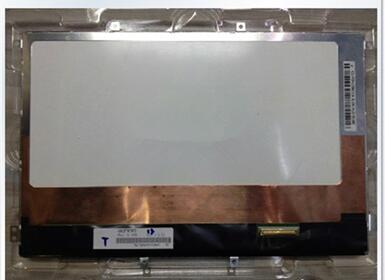

TFT LCDHannStar 10.1 inch TFT LCD Panel HSD101PWW1-A00
Mouse over to zoom in
- Product 91/108
-
Brand: HannStar
Model: HSD101PWW1-A00
Diagonal Size: 10.1 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1280(RGB)×800 WXGA
Configuration: RGB Vertical Stripe
Surface: Glare (Haze 0%), Hard Coating (3H), Reflection 1.5%
Brightness: 350 cd/m² (Typ.)
Contrast Ratio: 800:1 (Typ.) (TM)
Response Time: 25 (Typ.)(Tr+Td) ms
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K 45% (CIE1931)
Lamp Type: WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 40 pins LVDS (1 ch, 6-bit) , Connector
Power Supply: 3.3V (Typ.)
Operating Temperature: 0 ~ 50°C
Storage Temperature: -20 ~ 60 °C
Application: Pad & Tablet
