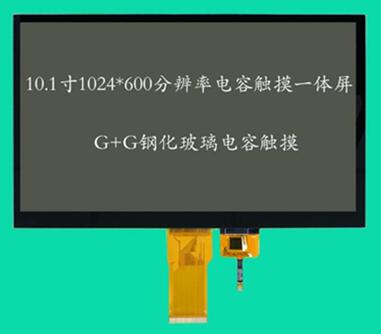

10.1" 50P TFT LCD Capacitive Touch Screen GT9271
Mouse over to zoom in
Product 76/98

Price: US$73.00   Submit a wholesale Inquiry
Quantity:



Size: 10.1 inch

LCD Type: TFT

Number of Dots: 1024(RGB)*600

LCD Dimension: 235.00*143.00*5.15mm

Active Area: 222.72*125.28mm

Dot Pitch: 0.2175*0.2088mm

PIN NO.: 50P

Display Color: 16.7M

Backlight: White LED

Color Pixel Arrangement: RGB Stripe

Polarizer Mode: Transmissive Type, Normally White Mode

Viewing Direction: 6 o’clock

Data Interface: RGB interface

CTP Interface: I2C interface

Brightness: 300 (typ.)

Contrast Ratio (CR): 350:1

NTSC (Color gamut): 50%

Backlight Voltage: 9.6V  (typ.)

Backlight Current: 260mA  (typ.)

Operating Temp.: -20 ~ 70 degree

Storage Temp.: -30 ~ 80 degree

ROSH



CTP Characteristics

CPT Structure Type: Cover Glass + ITO Glass (G+G)

Resolution: 1024*600

Surface Hardness: ≥ 6H

Transparency: > 86%

Drive IC: GT9271

Interface Type: I2C

I2C Slave Address (7bit): 0x14 or 0x5D

Support Point: 10

Supply Voltage: 3.3V
