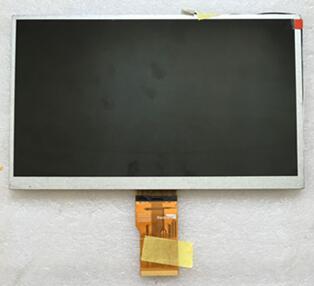

TFT LCDHannStar 10.1 inch TFT LCD Screen HSD101PFW5-C00
Mouse over to zoom in
- Product 107/108
-
Brand: HannStar
Model: HSD101PFW5-C00
Diagonal Size: 10.1 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1024(RGB)×600 WSVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 500 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 4/12 (Typ.)(Tr/Td) ms
Viewing Angle: 80/80/70/80 (Typ.)(CR≥10)
Lamp Type: WLED
Display Mode: TN, Normally White, Transmissive
Frame Rate: 60Hz
Signal Interface: LVDS (1 ch, 6/8-bit), 60 pins, FPC
Touch Panel: Without
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 85 °C
Application: Car Display Panel
