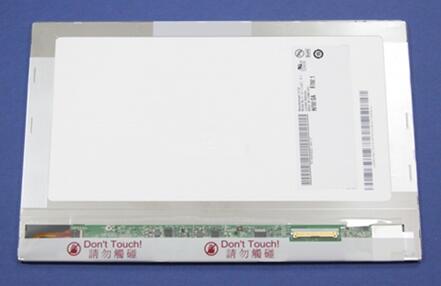

AUO 10.1 inch TFT LCD Panel B101EW05 V1 1280*800
Mouse over to zoom in
Product 106/108

Price: US$43.00   Submit a wholesale Inquiry
Quantity:



Brand: AUO

Model: B101EW05 V1

Diagonal Size: 10.1 inch

Type: a-Si TFT-LCD, LCM

Pixel Format: 1280(RGB)×800  WXGA

Configuration: RGB Vertical Stripe

Surface: Hard coating (3H), Reflection 1.5% (Max.)

Brightness: 350 cd/m² (Typ.)

Contrast Ratio: 1300:1 (Typ.) (TM)

Response Time: 25 (Typ.)(Tr+Td) ms

Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)

Operating Mode: MVA, Normally Black, Transmissive

Support Color: 262K  45% (CIE1931)

Lamp Type:  WLED

Frame Rate: 60Hz

Touch Panel: Without

Interface Type: LVDS (1 ch, 6-bit) , 40 pins,  Connector

Power Supply: 3.3V (Typ.)

Operating Temperature: 0 ~ 50°C

Storage Temperature: -20 ~ 60 °C

Application:  Pad & Tablet
