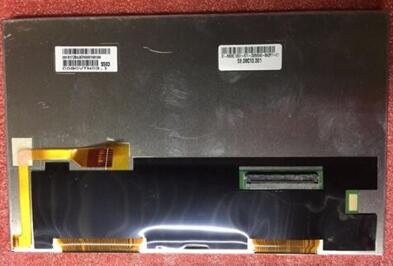

TFT LCDAUO 8.0 inch TFT LCD Screen C080VTN03.1 800*480
Mouse over to zoom in
- Product 102/121
-
Panel Brand: AUO
Panel Model: C080VTN03.1
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 8.0 inch
Resolution: 800(RGB)*480, WVGA
Display Mode: TN, Normally White, Transmissive
Active Area: 175.2*105.12 mm
Outline: 186.5*117.12*5.3 mm
Surface: Antiglare, Hard coating (3H)
Brightness: 500 cd/m2 (Typ.)
Contrast Ratio: 600:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 15/20 (Typ.) (Tr/Td)
Viewing Angle: 60/60/40/60 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: WLED
Signal Interface: Parallel RGB (1 ch, 6-bit)
Input Voltage: 3.3/11.0/20.0/-8.0V (Typ.) (VCC/AVDD/VGH/VGL)
Application: All Car Display Panel
