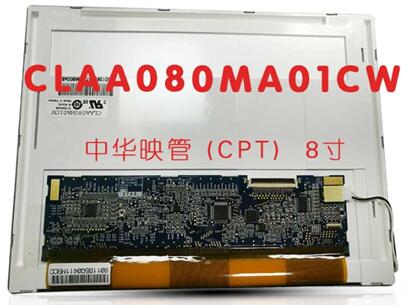

TFT LCDCPT 8.0 inch TFT LCD Panel CLAA080MA01CW 800*600
Mouse over to zoom in
- Product 101/121
-
Brand: CPT
Model: CLAA080MA01CW
Diagonal Size: 8.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×600 SVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare , Hard coating (3H)
Brightness: 250 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 25 (Typ.)(Tr+Td) ms
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K 50% (CIE1931)
Lamp Type: WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: TTL (1 ch, 6-bit) , 40 pins , Connector
Power Supply: 3.3V (Typ.)
Operating Temperature: -30 ~ 85°C
Storage Temperature: -40 ~ 95 °C
Application: Industrial Application Panel, Digital Photo Frame Panel, All Portable DVD Player Panel
