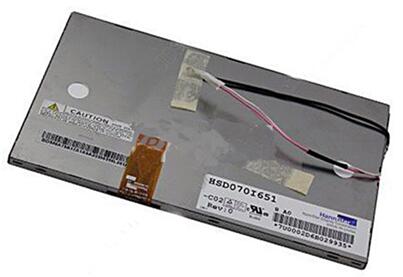

TFT LCDHannStar 7.0 inch 26P TFT LCD HSD070I651-C02
Mouse over to zoom in
- Product 147/374
-
Brand: HannStar
Model: HSD070I651-C02
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 480(RGB)×234
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard Coating (3H)
Brightness: 300 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 5/20 (Typ.)(Tr/Td) ms
Viewing Angle: 60/60/40/60 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: Full Color
Lamp Type: 1 pcs CCFL
Frame Rate:
Touch Panel: Without
Interface Type: 26 pins TFT Specific Analog RGB, FPC
Power Supply: 3.3/5/15/-10V (Typ.) (VCC/AVDD/VGH/VGL)
Operating Temperature: -10 ~ 60°C
Storage Temperature: -20 ~ 70 °C
Application: All Digital Photo Frame Panel, All Portable DVD Player Panel, All Video Door Phone Panel
