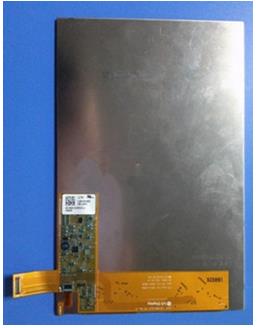

TFT LCDLG 7" HD ME173X Pad Screen LD070WX3-SL01 800*1280
Mouse over to zoom in
- Product 146/374
-
Panel Brand: LG Display
Panel Model: LD070WX3-SL01
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*1280, WXGA
Display Mode: IPS, Normally Black, Transmissive
Surface: Hard coating
Brightness: 500 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 16.7M (6-bit + Hi-FRC)
Response Rime: 35 (Typ.) (Tr+Td)
Viewing Angle: 85/85/85/85 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 5 strings WLED
Signal Interface: MIPI (4 data lanes)
Input Voltage: 3.3/1.8V (Typ.) (VDD/VCC)
RoHS
Application: All Pad Panel
