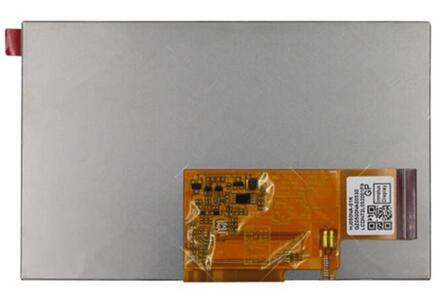

TFT LCDINNOLUX 5 inch TFT LCD Panel HJ050NA-01K No TP
Mouse over to zoom in
- Product 76/100
-
Brand: CHIMEI INNOLUX
Model: HJ050NA-01K
Diagonal Size: 5.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Vertical Stripe
Viewing Angle: 70/70/50/70 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K / 16.7M
Lamp Type: WLED
Frame Rate: 60Hz
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Mobile Phone Panel
