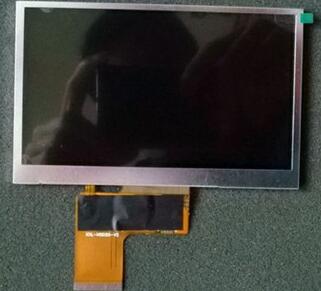

TFT LCD5.0 inch 39P TFT LCD Screen HX8257 480*272 No TP
Mouse over to zoom in
- Product 75/100
-
Size: 5.0 inch
LCD Type: TFT
CF Size: 117.7*67.6mm
Number of Dots: 480(RGB)*272
Active Area: 110.88*62.832mm
Controller: HX8257
PIN NO.: 39P
Viewing Direction: 12 O’clock
Display Color: 16.7M
Backlight: White LED
Polarizer Mode: Transmissive
Dot Pitch: 0.077*0.231mm
Color gamut: 50
Pixel Arrangement: RGB Vertical stripe
Application: GPS Device
ROSH
