TFT LCD
Mouse over to zoom in
- Product 71/100
-

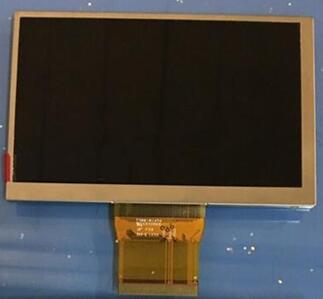

Brand: CPT
Model: CLAA050LA0ACW
Diagonal Size: 5.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Vertical Stripe
Surface: Hard Coating
Brightness: 500 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 20 (Typ.)(Tr+Td) ms
Viewing Angle: 70/70/60/70 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.2M 50% (CIE1931)
Lamp Type: 3S6P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: Parallel RGB (1 ch, 8-bit) , FPC , 60 pins
Power Supply: 3.3/9.6/18.0/-6.0V (Typ.) (VDD/AVDD/VGH/VGL)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Portable Navigation Device Panel, MP4 PMP Panel, Digital Photo Frame Panel, Portable DVD Player Panel, Industrial Application Panel, Car Display Panel
-
