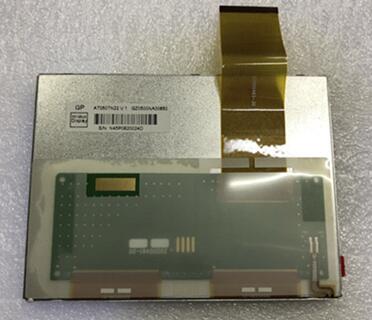

TFT LCDINNOLUX 5.0 inch TFT LCD Screen AT050TN22 V.1
Mouse over to zoom in
- Product 72/100
-
Panel Brand: INNOLUX
Panel Model: AT050TN22 V.1
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 5.0 inch
Resolution: 640(RGB)*480, VGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness:250 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 10/15 (Typ.) (Tr/Td) (ms)
Viewing Angle: 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency:
Lamp Type: 3S6P WLED
Signal Interface: Parallel RGB (1 ch, 8-bit)
Input Voltage: 3.3/5.0/15.0/-10V (Typ.) (VCC/AVDD/VGH/VGL)
Application: Digital Photo Frame Panel, Video Door Phone Panel
