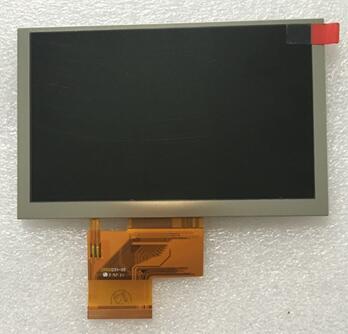

TFT LCDINNOLUX 5 inch HD TFT LCD EJ050NA-01G 800*480
Mouse over to zoom in
- Product 73/100
-
Panel Brand: CHIMEI INNOLUX
Panel Model: EJ050NA-01G
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 5.0 inch
Resolution: 800(RGB)*480, WVGA
Display Mode: TN, Normally White, Transmissive
Surface:
Brightness: 350 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 10/15 (Typ.) (Tr/Td)
Viewing Angle: 70/70/50/70 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 7S2P WLED
Signal Interface: Parallel RGB (1 ch, 8-bit)
Input Voltage: 3.3/10.4/16.0/-6.0V (Typ.) (DVDD/AVDD/VGH/VGL)
RoHS
Application: All Portable Navigation Device Panel, All Pocket TV Panel, All MP4 PMP Panel, All Digital Photo Frame Panel, All Portable DVD Player Panel, All VOIP Phone Panel, All Car Display Panel
