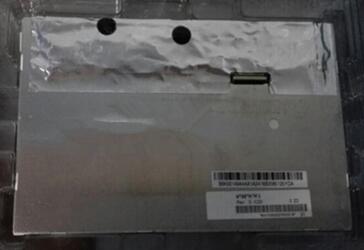

TFT LCDHannStar 7.0 inch TFT LCD HSD070PWW1-C00 1280*800
Mouse over to zoom in
- Product 249/374
-
Brand: HannStar
Model: HSD070PWW1-C00
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1280(RGB)×800 WXGA
Configuration: RGB Vertical Stripe
Surface: Hard Coating (3H)
Brightness: 690 cd/m² (Typ.)
Contrast Ratio: 800:1 (Typ.) (TM)
Response Time: 25 (Typ.)(Tr+Td) ms
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)
Operating Mode: IPS Pro, Normally Black, Transmissive
Support Color: 262K 50% (CIE1931)
Lamp Type: WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 30 pins LVDS (1 ch, 6-bit) , Connector
Power Supply: 3.3V (Typ.)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: MID UMPC Panel, Pad & Tablet
