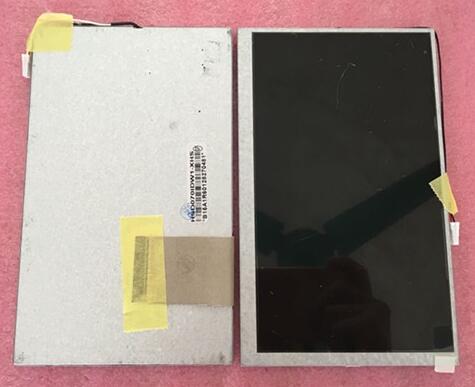

TFT LCDHannStar 7.0 inch HD TFT LCD HSD070IDW1-XHS
Mouse over to zoom in
- Product 250/374
-
Panel Brand: HannStar
Panel Model: HSD070IDW1-XHS
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*480, WVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Harding coating (3H)
Brightness: 450 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 262K / 16.2M (6-bit / 6-bit + FRC)
Response Rime: 5/20 (Typ.) (Tr/Td) (ms)
Viewing Angle: 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D)
Signal Interface: Parallel RGB (1 ch, 6/8-bit)
RoHS
Application: All Car Display Panel
