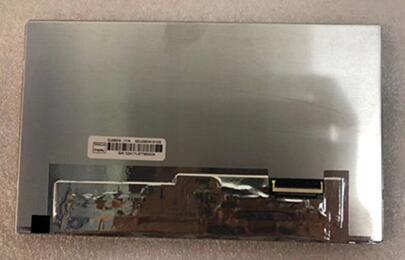

TFT LCDINNOLUX 8 inch TFT LCD Panel DJ080IA-11A 1280*720
Mouse over to zoom in
- Product 88/121
-
Brand: INNOLUX
Model: DJ080IA-11A
Diagonal Size: 8.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1280(RGB)×720 WXGA
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 750 cd/m² (Typ.)
Contrast Ratio: 1000:1 (Typ.) (TM)
Response Time: 10/15 (Typ.)(Tr/Td) ms
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)
Operating Mode: AAS, Normally Black, Transmissive
Support Color: 262K /16.7M 70% (CIE1931)
Lamp Type: WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 40 pins LVDS (1 ch, 6/8-bit) , Connector
Power Supply: 3.3V (Typ.)
Operating Temperature: -30 ~ 85°C
Storage Temperature: -40 ~ 90 °C
Application: Car Display Panel
