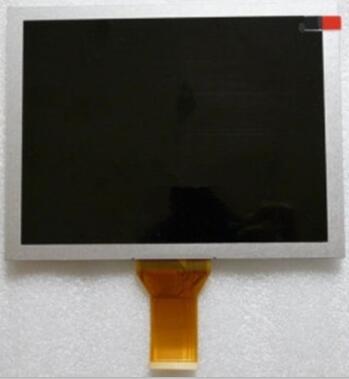

TFT LCDCHIMEI INNOLUX 8.0 inch TFT LCD AT080TN52 V.1
Mouse over to zoom in
- Product 89/121
-
Brand: CHIMEI INNOLUX
Model: AT080TN52 V.1
Diagonal Size: 8.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×600 SVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard Coating (3H)
Brightness: 250 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 10/15 (Typ.)(Tr/Td) ms
Viewing Angle: 70/70/50/70(Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K /16.2M
Lamp Type: 3S9P WLED
Frame Rate:
Touch Panel: Without
Interface Type: 50 pins Parallel RGB (1 ch, 6/8-bit) FPC
Power Supply: 3.3/10.4/16.0/-7.0V (Typ.) (VCC/AVDD/VGH/VGL)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: All Digital Photo Frame Panel, All Portable DVD Player Panel
