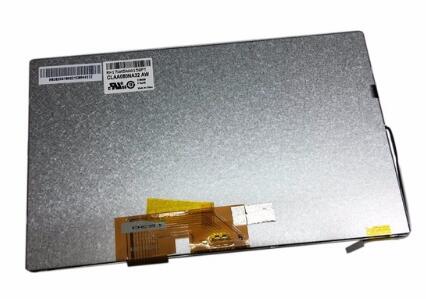

CPT 8.0 inch TFT LCD CLAA080NA32 AW 1024*600
Mouse over to zoom in
Product 90/121

Price: US$32.00   Submit a wholesale Inquiry
Quantity:



Brand: CPT

Model: CLAA080NA32 AW

Diagonal Size: 8.0 inch

Type: a-Si TFT-LCD, LCM

Pixel Format: 1024(RGB)×600 WSVGA

Configuration: RGB Vertical Stripe

Surface: Antiglare

Brightness: 600 cd/m² (Typ.)

Contrast Ratio: 800:1 (Typ.) (TM)

View Direction: 12 o’clock

Response Time: 25 (Typ.)(Tr+Td) ms

Viewing Angle: 75/75/70/60 (Typ.)(CR≥10)

Operating Mode: TN, Normally White, Transmissive

Support Color: 262K   50% (CIE1931)

Lamp Type: 3S13P WLED

Frame Rate: 60Hz

Touch Panel: Without

Interface Type: 40 pins LVDS (1 ch, 6/8-bit), FPC

Power Supply: 3.3/9.6/21.0/-6.0V (Typ.) (DVDD/AVDD/VGH/VGL)

Operating Temperature: -20 ~ 70°C

Storage Temperature: -30 ~ 80 °C

Application: Car Display Panel
