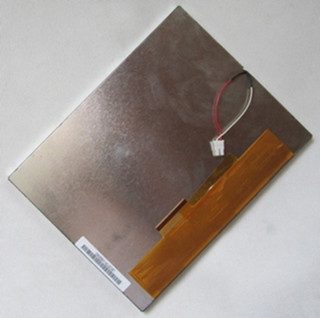

TFT LCDCPT 8.0" 60P LCD Digital Screen JW080MD019 800*480
Mouse over to zoom in
- Product 91/121
-
Brand: CPT
Display size: 8 inch
Dimension: 183 (W) x 141 (H) x 6.7 (D) (without fix)
Visual area: 162 (H) x 121.5 (V)
Resolution: 800RGB (H) × 480 (V)
Points from: 0.2025 (H) x 0.2025 (V)
Visual angle: L70 ° R70 ° U50 ° D60
Panel type TFT
Display Color: 262K
Ratio: 500:1
Brightness: 350cd/m2
Digital interface type
Connection pin: FPC 60
Backlight: 21 LED
Response time: 5-28ms
Working temperature: -20 ~ 80 degree
Weight: 240 (Typ.)
Application: All Digital Photo Frame Panel, All Portable DVD Player Panel, All Car Display Panel
