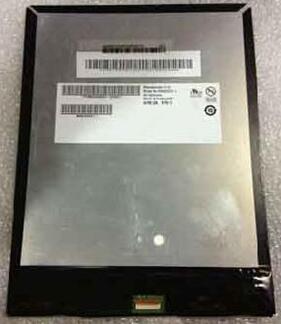

TFT LCDAUO 8.0 inch TFT LCD Screen B080XAT01.1 768*1024
Mouse over to zoom in
- Product 66/121
-
Brand: AUO
Model: B080XAT01.1
Diagonal Size: 7.9 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 768(RGB)×1024 XGA
Configuration: RGB Vertical Stripe
Surface:
Brightness: 230 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 25 (Typ.)(Tr+Td) ms
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)
Operating Mode: AHVA, Normally Black, Transmissive
Support Color: 262K 50% (CIE1931)
Lamp Type: 4S5P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: MIPI (4 data lanes) , Connector , 35 pins
Power Supply: 3.7V (Typ.)
Operating Temperature: 0 ~ 50°C
Storage Temperature: -20 ~ 60 °C
Application: Pad & Tablet
