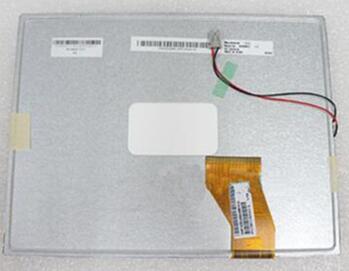

AUO 8.0 inch TFT LCD Screen A080SN01 V9 800*600
Mouse over to zoom in
Product 65/121

Price: US$31.80   Submit a wholesale Inquiry
Quantity:



Brand: AUO

Model: A080SN01 V9

Diagonal Size: 8.0 inch

Type: a-Si TFT-LCD, LCM

Pixel Format: 800(RGB)×600  SVGA

Configuration: RGB Vertical Stripe

Surface: Antiglare, Hard Coating (3H)

Brightness: 270 cd/m² (Typ.)

Contrast Ratio: 500:1 (Typ.) (TM)

Response Time: 4/16 (Typ.)(Tr/Td) ms

Viewing Angle: 70/70/60/65 (Typ.)(CR≥10)

Operating Mode: TN, Normally White, Transmissive

Support Color: 262K/16.2M   50% (CIE1931)

Lamp Type: 9S3P WLED

Frame Rate: 60Hz

Touch Panel: Without

Interface Type: TTL (1 ch, 6/8-bit) + SPI, 60 pins  , FPC

Power Supply: 3.3/11.68/15/-6.75V (Typ.) (VCC/AVDD/VGH/VGL)

Operating Temperature: -10 ~ 60°C

Storage Temperature: -20 ~ 70 °C

Application: Portable DVD Player Panel, Digital Photo Frame Panel
