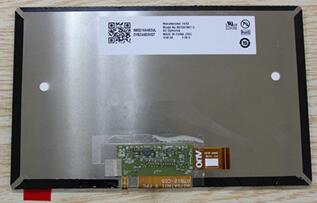

Brand: AUO
Model: B070ATN01.0
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1024(RGB)×600 WSVGA
Configuration: RGB Vertical Stripe
Surface: Glare (Haze 0%), Hard coating (3H), Reflection 4.3% (Typ.)
Brightness: 350 cd/m² (Typ.)
Contrast Ratio: 700:1 (Typ.) (TM)
Response Time: 16 (Typ.)(Tr+Td) ms
Viewing Angle: 75/75/70/75(Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K / 16.2M 50% (CIE1931)
Lamp Type: 4S6P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: LVDS (1 ch, 6/8-bit) , FPC , 39 pins
Power Supply: 3.3V (Typ.)
Operating Temperature: -20 ~ 60°C
Storage Temperature: -30 ~ 70 °C
Application: Digital Photo Frame Panel, Portable DVD Player Panel, Industrial Application Panel, Pad & Tablet Panel
-
