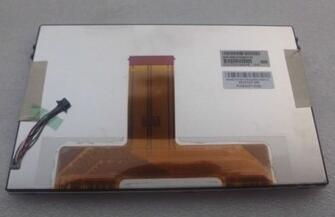

TFT LCDAUO 7" HD TFT LCD Screen C070VW04 V0 800*480
Mouse over to zoom in
- Product 170/374
-
Panel Brand: AUO
Panel Model: C070VW04 V0
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*480, WVGA
Display Mode: AMVA, Normally Black, Transmissive
Surface: Antiglare
Brightness: 650 cd/m2 (Typ.)
Contrast Ratio: 2000:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 10/20 (Typ.) (Tr/Td)
Viewing Angle: 80/80/80/80 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 6S3P WLED
Signal Interface: Parallel RGB (1 ch, 6-bit)
Input Voltage: 3.2/12.5/15/-9V (Typ.) (VDD/AVDD/VGH/VGL)
RoHS
Application: All Car Display Panel
