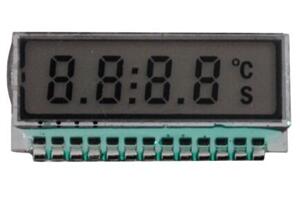

Segment LCD13P TN Positive 4-Digits Segment LCD No Backlight
Mouse over to zoom in
- Product 17/36
-
Display content: 4-Digits
Outline Dimension: 23.0*10.0*2.8mm
Active Area: 20.0*6.0mm
Display mode: TN , Positive
Visual angle: 6 O’CLOCK
Connection: Metal PIN
Drive mode: 1/4 Duty , 1/3 Bias
Backlight: No
Working voltage: 2.5V
PIN NO.: 13P
Operating Temperature: 0 ~ 60 degrees
Storage Temperature: -20 ~ 70 degrees
Recommended Driver IC: HT1621 (Without)
